Carbide grade for drawing dies |
| Grade |
Density(g/cm3) |
Hardness(HRA) |
TRS(MPa) |
Applications recommended |
| YG6X |
14.95 |
91.5 |
1800 |
For drawing steel and nonferrous wires or bars of less than ￠6.00mm under not so much stress. |
| YG6 |
14.95 |
90.5 |
1900 |
For drawing steel, nonferrous alloy bars of less than ￠20.00mm under more stress and also for drawing tubes of less than ￠10.00mm. |
| YG8 |
14.8 |
89.5 |
2200 |
For drawing steel and nonferrous bars and tubes, also for manufacturing mechanical parts, tools and wear parts. |
| YG10 |
14.5 |
88.5 |
2400 |
| YG15 |
14.0 |
87.0 |
2800 |
For drawing steel bars and tubes with a high reduction rate and for manufacturing anvils, drilling and punching and impacting. |
|
| |

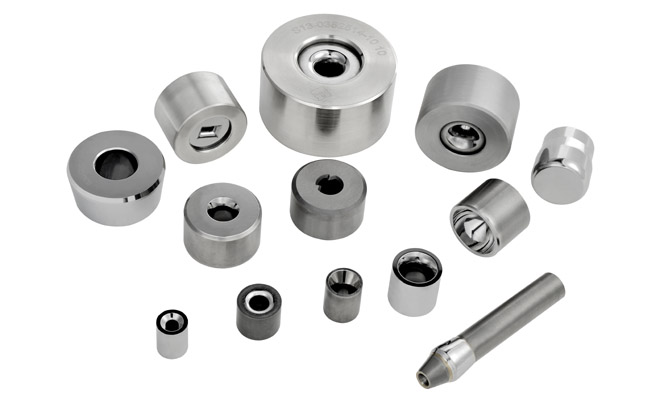

Carbide drawing dies nibs |
|
| |
Finished drawing dies |
|
|
|
|
