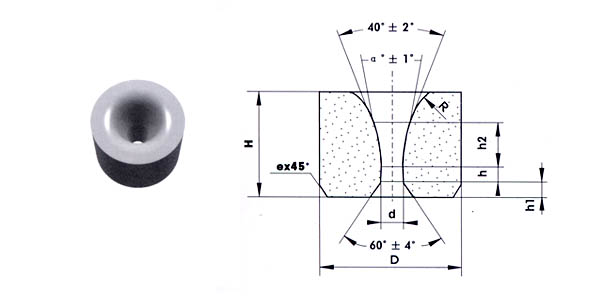

Type S11

Carbide drawing die nibs with large reducing angles

for drawing ferrous metal wires



Type

D

H

Range of d

h

ฆมกใ

S11-

8

6

0.3-1.0

0.3-0.6

14กใ

10

8

0.7

0.6

14กใ

13

10

0.4-2.8

0.3-1.6

16กใ

15

13

0.5-3.0

0.3-1.4

16กใ

16

14

0.4-3.8

0.3-1.8

16กใ

20

17

1.2-4.7

2.0-2.6

18กใ

21

17

1.8-5.7

1.2-3.0

18กใ

22

18

1.7-6.4

1.2-3.0

18กใ

All dimensions in (mm)
