Type 42

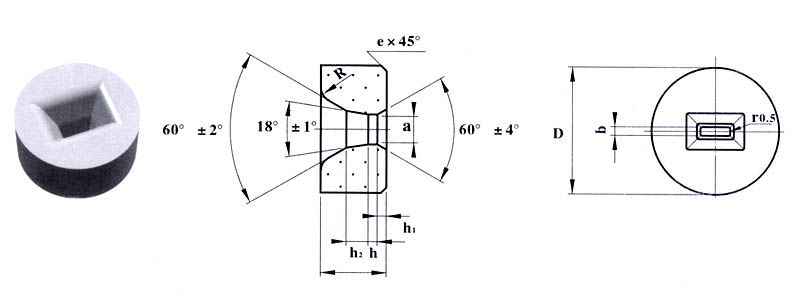

Carbide drawing die nibs for drawing non-ferrous metal strips |
 |
Type |
D |
H |
a |
b |
h |
42- |
20 |
12 |
1.9-3.1 |
0.6-1.9 |
2 |
25 |
15 |
3.9-6.2 |
1.0-3.9 |
2.5 |
35 |
18 |
7.2-11.4 |
1.1-6.3 |
2.5 |
45 |
20 |
12.8-14.6 |
1.4-5.9 |
3 |
50 |
20 |
16.5-23.2 |
1.9-6.3 |
3 |
60 |
20 |
24.5-31.0 |
1.0-3.8 |
3 |
|
All dimensions in (mm)
|
|
