Drawing dies for drawing screwed steel wires

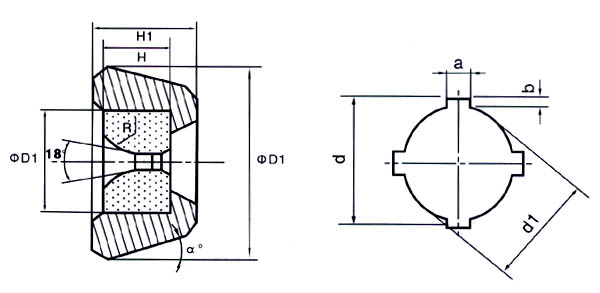

Suitable for drawing screwed steel wires of diameter 4, 5, 6, 7, 8, etc. Or different types of steel wire and tubes. Surface finish of inner hole is over Details for drawing and specifications see below.

Nominal diameter number of screws.

Dia.

13

12

11

10

9

8

7

6

5

4.8

4

3

d1

12.4

11.5

10.5

9.6

8.6

7.7

6.7

5.8

4.8

4.6

3.85

2.8

d

13.5

12.6

11.6

10.6

9.6

8.5

7.5

6.5

5.4

5.2

4.25

3.2

a

2.6-3.3

2.4-3.0

2.2-2.8

2.0-2.5

1.8-2.3

1.8-2.2

1.8-2.2

1.3-2.0

1.2-1.8

1.2-1.8

1.0-1.5

1.0-1.5

b

0.50

0.50

0.50

0.50

0.50

0.40

0.40

0.35

0.25

0.25

0.20

0.20

6

6

6

6

6

6

4

4

4

4

3 or 4

3

75-90

75-85

85-80

60-75

60-70

45-56

45-56

38-45

34-40

34-40

32-36

30-35

All dimensions in (mm)

Remarks: size of steel case can be decided by customers.
