Shaped drawing dies

Drawing dies frequently used for various square flat.. Rectangular and hexagonal ferrous and nonferrous materials with Size of 1.82.7-5.9175mm are available in types of 40.41.42 .60 and (L.N.R.S)

The sketches and sizes are indicated in the following figures and table.


Type 40 : Drawing dies for square rods

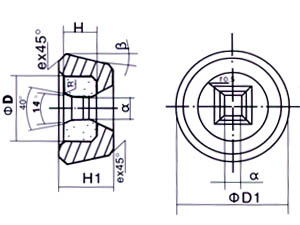

Type 41 : Drawing dies for flat materials

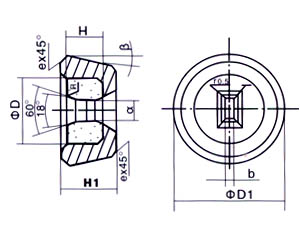

Type 42 : Drawing dies for rectangular material

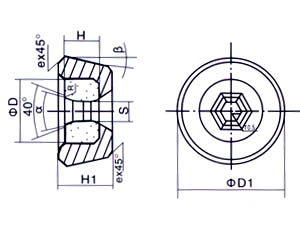

Type 60 : Drawing dies for hexagonal materials

Type

Size of die blank

Size of steel sleeve

Range of nib diameter

D

H

D1

H1

40

16

12

14

33

20

1.8-2.7

22

18

14

40

26

2.8-4.6

30

21

14

66

30

4.7-7.7

35

25

14

70

35

7.8-10.7

45

25

14

100

35

10.8-15.7

50

28

14

125

45

15.8-19.7

60

30

16

135

50

19.8-24.7

65

32

16

140

50

24.8-28.5

70

35

16

150

55

28.6-32.5

80

35

16

170

55

32.6-38.5

90

40

20

180

65

38.6-42.5

100

40

20

190

70

42.6-49.5

120

45

20

200

70

49.6-55

41











size of ab

30

21



66

30

6.74.7

35

25



70

35

7.7-9.72.7-7.7

45

25



100

35

11.77.7-9.7

50

28



125

45

13.7-17.66.7-15.7

60

30



135

50

19.6-23.67.7-14.7

42











size of ab

20

12



40

20

1.9-3.81.0-2.0

25

15



45

23

3.9-7.11.0-4.0

35

18



70

26

7.2-12.71.1-6.5

45

20



100

30

12.8-151.4-6.0

50

20



125

35

16.5-241.0-6.0

60

20



135

35

24.5-321.0-4.0

60









size of S

30

21

14

66

30

2.5-8.5

35

21

14

70

30

8.6-11.0

40

25

14

90

35

11.5-13.0

45

25

14

100

35

13.5-19.0

55

28

14

130

40

19.5-24.0

65

30

16

140

50

24.5-29.0

75

35

16

160

55

29.5-38.0

90

35

16

180

65

38.3-50.0

100

40

16

190

70

52.0-58.5

120

42

16

200

70

59.5-75.0



All dimensions in (mm)
