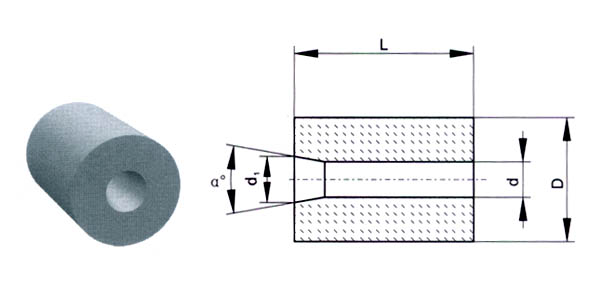

Die blanks for reducing diameter of nuts |
 |
Type |
Dimension |
Type |
Dimension |
d |
D |
Range of L |
d1 |
¦Á¡£ |
d |
D |
Range of L |
d1 |
¦Á¡£ |
BS02114- |
2.1 |
14 |
15-30 |
2.5 |
20 |
BS08430- |
8.4 |
30 |
25-54 |
9.3 |
20 |
BS02116- |
2.1 |
16 |
15-30 |
2.5 |
20 |
BS10030- |
10.0 |
30 |
14-20 |
11.4 |
20 |
BS03114- |
3.1 |
14 |
15-30 |
3.5 |
20 |
BS10228- |
10.2 |
28 |
25-54 |
11.4 |
20 |
BS03116- |
3.1 |
16 |
15-30 |
3.5 |
20 |
BS10230- |
10.2 |
30 |
25-54 |
11.4 |
20 |
BS03914- |
3.9 |
14 |
15-35 |
4.5 |
20 |
BS11940- |
11.9 |
40 |
30-40 |
13.2 |
20 |
BS03916- |
3.9 |
16 |
15-35 |
4.5 |
20 |
BS12040- |
12.0 |
40 |
14-20 |
13.4 |
20 |
BS04516- |
4.5 |
16 |
10-20 |
5.9 |
20 |
BS14040- |
14.0 |
40 |
14-40 |
15.4 |
20 |
BS04716- |
4.7 |
16 |
15-35 |
5.4 |
20 |
BS17545- |
17.5 |
45 |
20-54 |
19.3 |
20 |
BS04718- |
4.7 |
18 |
20-35 |
5.4 |
20 |
BS19545- |
19.5 |
45 |
20-30 |
21.25 |
20 |
BS06520- |
6.5 |
20 |
20-42 |
7.2 |
20 |
BS21050- |
21.0 |
50 |
20-30 |
22.75 |
20 |
BS06522- |
6.5 |
22 |
10-42 |
7.9 |
20 |
BS24060- |
24.0 |
60 |
25-30 |
25.75 |
20 |
BS08030- |
8.0 |
30 |
10-20 |
9.4 |
20 |
BS26560- |
26.5 |
60 |
25-30 |
28.63 |
12 |
BS08426- |
8.4 |
26 |
25-54 |
9.3 |
20 |
BS32070- |
32.0 |
70 |
25-30 |
34.13 |
12 |
|
| |
| Tolerances of the inner diameter(d) of the blanks as per table below (mm) |
Nominal inner dia. |
Nominal length |
¡Ü18 |
£¾18-30 |
£¾30-50 |
£¾50 |
¡Ü6 |
0-0.45 |
0-0.55 |
0-0.65 |
- |
£¾6-10 |
0-0.50 |
0-0.60 |
0-0.70 |
0-0.80 |
£¾10-14 |
0-0.55 |
0-0.70 |
0-0.80 |
0-0.90 |
£¾14-18 |
0-0.60 |
0-0.80 |
0-0.90 |
0-1.00 |
£¾18-24 |
0-0.65 |
0-0.90 |
0-1.00 |
0-1.10 |
£¾24 |
0-0.70 |
0-1.00 |
0-1.10 |
0-1.20 |
|
| |
| Tolerances of out diameters(D) as per the table below (mm) |
Nominal out
diameters |
Nominal length |
¡Ü18 |
£¾18-30 |
£¾30-50 |
£¾50 |
¡Ü14 |
+0.50
-0.40 |
+0.50
-0.40 |
+0.60
-0.40 |
+0.65
-0.40 |
£¾14-18 |
+0.55
-0.40 |
+0.55
-0.40 |
+0.60
-0.45 |
+0.65
-0.45 |
£¾18-24 |
+0.60
-0.40 |
+0.60
-0.40 |
+0.65
-0.45 |
+0.70
-0.45 |
£¾24-30 |
+0.65
-0.45 |
+0.65
-0.45 |
+0.70
-0.50 |
+0.75
-0.50 |
£¾30-45 |
+0.70
-0.50 |
+0.70
-0.50 |
+0.75
-0.60 |
+0.80
-0.60 |
£¾44-55 |
+0.75
-0.55 |
+0.80
-0.60 |
+0.85
-0.65 |
+0.80
-0.65 |
£¾55 |
- |
+0.90
-0.70 |
+0.95
-0.75 |
+1.00
-0.80 |
|
| |
| Tolerance of blank height(H) as per the table below (mm) |
Nominal out
diameters |
Nominal diameters |
¡Ü18 |
£¾18-30 |
£¾30-50 |
£¾50 |
¡Ü14 |
+0.50
-0.40 |
+0.50
-0.40 |
+0.60
-0.40 |
+0.65
-0.40 |
£¾14-18 |
+0.55
-0.40 |
+0.55
-0.40 |
+0.60
-0.45 |
+0.65
-0.45 |
£¾18-24 |
+0.60
-0.40 |
+0.60
-0.40 |
+0.65
-0.45 |
+0.70
-0.45 |
£¾24-30 |
+0.65
-0.45 |
+0.65
-0.45 |
+0.70
-0.50 |
+0.75
-0.50 |
£¾30-45 |
+0.70
-0.50 |
+0.70
-0.50 |
+0.75
-0.60 |
+0.80
-0.60 |
£¾44-55 |
+0.75
-0.55 |
+0.80
-0.60 |
+0.85
-0.65 |
+0.80
-0.65 |
£¾55 |
- |
+0.90
-0.70 |
+0.95
-0.75 |
+1.00
-0.80 |
|
| |
| The flatness as per the table below |
Nominal length |
¡Ü18 |
£¾18-30 |
£¾30-50 |
£¾50 |
Flatness ¡Ü |
0.30 |
0.35 |
0.40 |
0.55 |
|
| |
