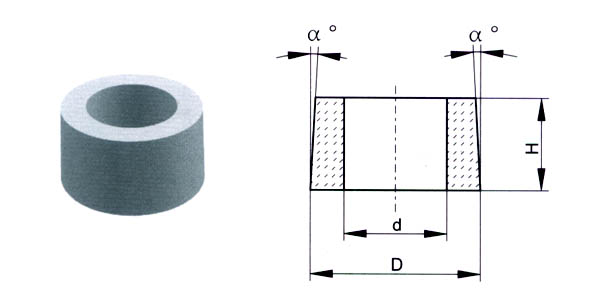

Punching die blanks for batteries |
 |
Type |
Dimension |
d |
D |
H |
¦Á¡ã |
BR0902022 |
9.0 |
20 |
22 |
1¡ã 30¡ä |
BR0942022 |
9.4 |
20 |
22 |
1¡ã 30¡ä |
BR1042120 |
10.4 |
21 |
20 |
1¡ã 30¡ä |
BR1222520 |
12.2 |
25 |
20 |
1¡ã 30¡ä |
BR1253022 |
12.5 |
30 |
22 |
1¡ã 30¡ä |
BR1302520 |
13.0 |
25 |
20 |
1¡ã 30¡ä |
BR1303022 |
13.0 |
30 |
22 |
1¡ã 30¡ä |
BR1883622 |
18.8 |
36 |
22 |
1¡ã 30¡ä |
BR1923622 |
19.2 |
36 |
22 |
1¡ã 30¡ä |
BR1943220 |
19.4 |
32 |
20 |
1¡ã 30¡ä |
BR2204022 |
22.0 |
40 |
22 |
1¡ã 30¡ä |
BR2253820 |
22.5 |
38 |
20 |
1¡ã 30¡ä |
BR2254022 |
22.5 |
40 |
22 |
1¡ã 30¡ä |
BR2354022 |
23.5 |
40 |
22 |
1¡ã 30¡ä |
BR2393820 |
23.9 |
38 |
20 |
1¡ã 30¡ä |
BR2424022 |
24.2 |
40 |
22 |
1¡ã 30¡ä |
BR2884720 |
28.8 |
47 |
20 |
1¡ã 30¡ä |
BR3084720 |
30.8 |
47 |
20 |
1¡ã 30¡ä |
BR3124622 |
31.2 |
46 |
22 |
1¡ã 30¡ä |
BR3184720 |
31.8 |
47 |
20 |
1¡ã 30¡ä |
|
| |
| Tolerance for punching dies for batteries as per the table below (mm) |
Allowed tolerances |
D |
d |
H |
¡À0.6 |
8-24 |
0
-0.8 |
¡À0.5 |
£¾24-48 |
0
-1.0 |
|
| |
| |
