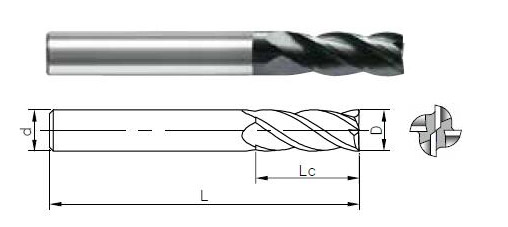

Description |
D |
Lc |
L |
d |
z |
Standard Length |
1.0~6.0 |
3.0~16 |
50 |
3~6 |
4 |
6.0~8.0 |
16~20 |
60 |
6~8 |
4 |
8.5~12.0 |
20~30 |
75 |
10~12 |
4 |
14.0~25.0 |
40~50 |
100 |
14~25 |
4 |
With Long Flutes Length |
3.0~6.0 |
4.0~6.0 |
75 |
12~21 |
4 |
3.0~12.0 |
4.0~12.0 |
100 |
12~45 |
4 |
6.0~25.0 |
6.0~25.0 |
150 |
45~75 |
4 |
With Long Shank Length |
6.0~8.0 |
16~20 |
75 |
6~8 |
4 |
8.0~12.0 |
16~30 |
100 |
6~12 |
4 |
10.0~12.0 |
25~30 |
150 |
10~12 |
4 |
With Stub Length |
4.0~6.0 |
2.0~9.0 |
50 |
1~6 |
4 |
8.0 |
10~12 |
60 |
8 |
4 |
10.0 |
15 |
75 |
10 |
4 |
12.0 |
18 |
75 |
12 |
4 |
16 |
24 |
100 |
16 |
4 |
|
