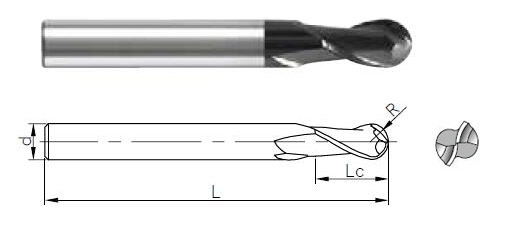

Description |
D |
Lc |
L |
d |
R |
Z |
Standard Length |
0.8~6.0 |
2~14 |
50 |
3~8 |
0.40~3.5 |
2 |
7.0 |
14 |
60 |
8 |
3.50 |
2 |
8.0 |
16 |
60 |
8 |
4.00 |
2 |
9.0 |
18 |
75 |
10 |
4.50 |
2 |
10.0 |
20 |
75 |
10 |
5.00 |
2 |
11.0 |
22 |
75 |
12 |
5.50 |
2 |
3.0~4.0 |
8.0-10.0 |
90 |
4~6 |
1.5~2.0 |
2 |
12.0~20.0 |
24~40 |
100 |
12~20 |
6.00~10.00 |
2 |
With Long Shank Length |
1.0~8.0 |
2~16 |
75 |
6~8 |
0.50~4.00 |
2 |
1.0~12.0 |
2~24 |
100 |
6~12 |
0.5~6.0 |
2 |
6.0~20.0 |
12~40 |
150 |
6~20 |
3.00~10.00 |
2 |
|
